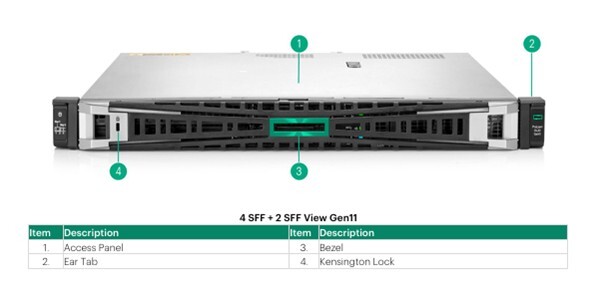

HP SERVER DL20 GEN11 XEON E2436 1P16GB 4SFF

System Unit

Dimensions (Height x Width x Depth) - SFF Drives 4.32 x 43.46 x 37.84 cm 1.69 x 17.11 x 15.25in - LFF Drives 4.32 x 43.46 x 38.22 cm 1.70 x 17.11 x 15.05 in Weight (approximate) - Non-hot Plug 2 LFF fully loaded (all hard drives, power supplies, and processors installed) Min 9 kg to Max 12 kg (19.84 to 26.46 lb.) - Hot Plug 2LFF fully loaded (one hard drive, power supply, and processor installed) Min 9 kg to Max 12 kg (19.84 to 26.46 lb.) - Hot Plug 4SFF fully loaded (two hard drives, power supply, and processor installed) Min 9 kg to Max 12 kg (19.84 to 26.46 lb.)

290W Non-hot Plug Power Supply

Input Requirements   - Rated Line Voltage 100 to 120 VAC 200 to 240 VAC - Rated Input Current 5.5 A max (at 100 VAC) - Rated Input Frequency 50 to 60 Hz - Rated Input Power 550 W (at 100 VAC)

BTU Rating - Maximum 1130 BTU per hr. (at 115 VAC) 1126 BTU per hr. (at 230 VAC)

Power Specifications To review typical system power ratings, use the Power Advisor which is available via the online tool located at: https://poweradvisorext.it.hpe.com/   Click on the system of interest. Example: DL20 Gen11 - Follow the instructions of the next screens.

Power Supply Output (per power supply) - Rated Steady-State Power 290 W Max - Maximum Peak Power 366 W within 10 seconds

500W/800W/1000W Redundant Power Supply

Input Requirements (per power supply)   Rated Line Voltage - 100 to 120 VAC - 200 to 240 VAC

BTU Rating   Maximum - For 1000W Power Supply: 3753 BTU/hr. (at 100 VAC), 3685 BTU/hr. (at 240 VAC), 3685 BTU/hr. (at 240 VDC) for China Only - For 800W Power Supply: 3071BTU/hr. (at 200 VAC), 3112 BTU/hr. (at 240 VDC) for China Only - For 500W Power Supply: 1979 BTU/hr. (at 100 VAC), 1911 BTU/hr. (at 200 VAC), 1965 BTU/hr. (at 240 VDC) for China Only

Power Supply Output (per power supply)   Rated Steady-State Power - For 1000W Power Supply: 1000W (at 100 VAC), 1000W (at 240 VAC), 1000W (at 240 VDC) input for China only - For 800W Power Supply: 800W (at 240 VAC), 800W (at 240 VDC) input for China only - For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VDC) input for China only Maximum Peak Power - For 1000W Power Supply: 1000W (at 100 VAC), 1000W (at 240 VAC), 1000W (at 240 VDC) input for China only - For 800W Power Supply: 800W (at 240 VAC), 800W (at 240 VDC) input for China only - For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VDC) input for China only



System Inlet Temperature   - Standard Operating Support 10° to 35°C (50° to 95°F) at sea level with an altitude derating 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. The maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating above 30°C (86°F). - Extended Ambient Operating Support For approved hardware configurations, the supported system inlet range is to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae   For approved hardware configurations, the supported system inlet range is to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.).   The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae - Non-operating -30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr. (36°F/hr.).

Relative Humidity (non-condensing) - Operating 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. - Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude - Operating 3050 m (10,000 ft.). This value may be limited by the type and number of options installed. The maximum allowable altitude change rate is 457 m/min (1500 ft./min). - Non-operating 9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).
